2PCS Steel Lights Boxes Housing Kit with 6 Inch Stop/Turn/Tail Lights & 2 Inch Marker Lights

• Running/Stop/Brake/Turn Signal Light.

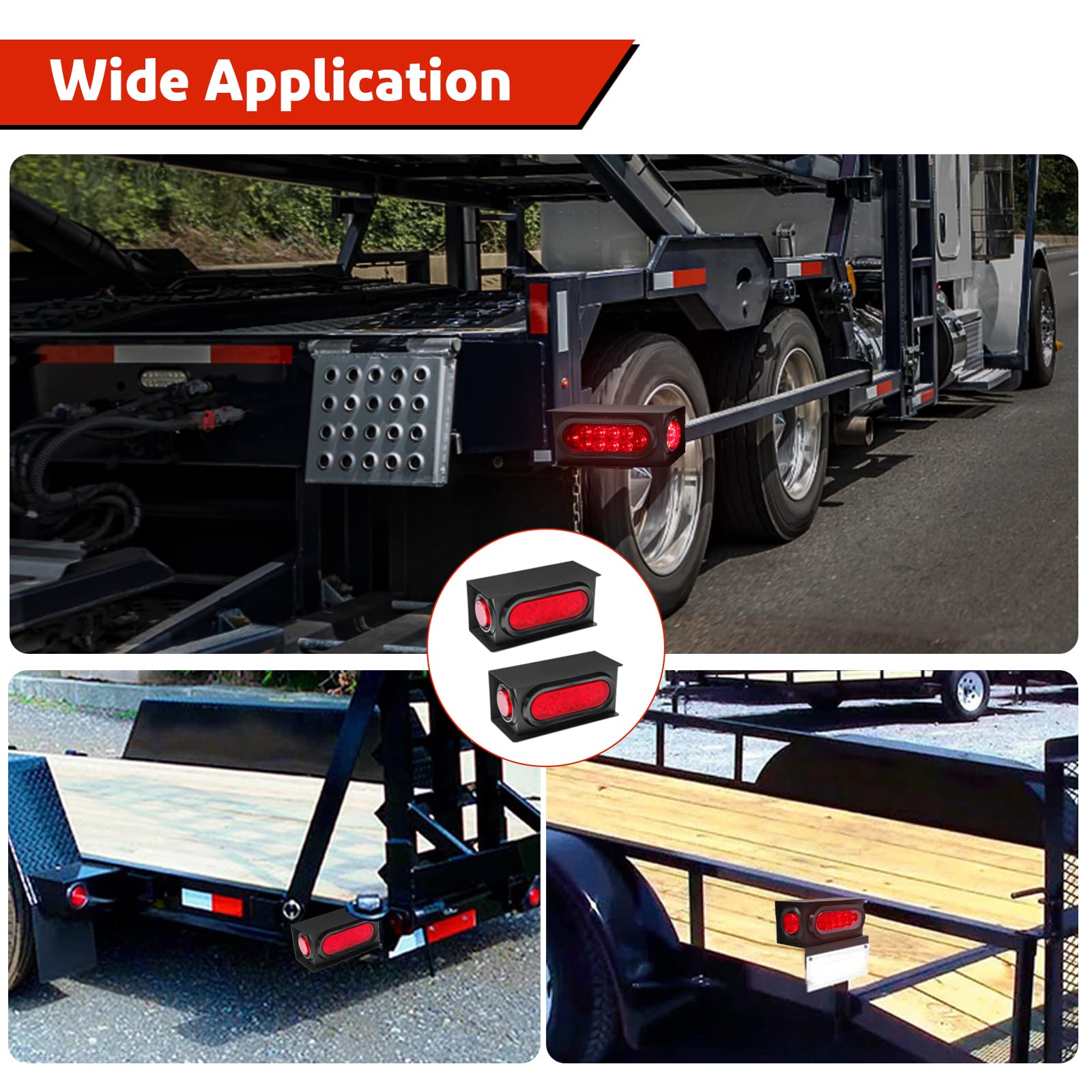

• Trucks, Trailers, Ships, Buses, Trucks, RV Camper, Caravans, Snowmobiles and Other 80-Inch-Wide Trailers.

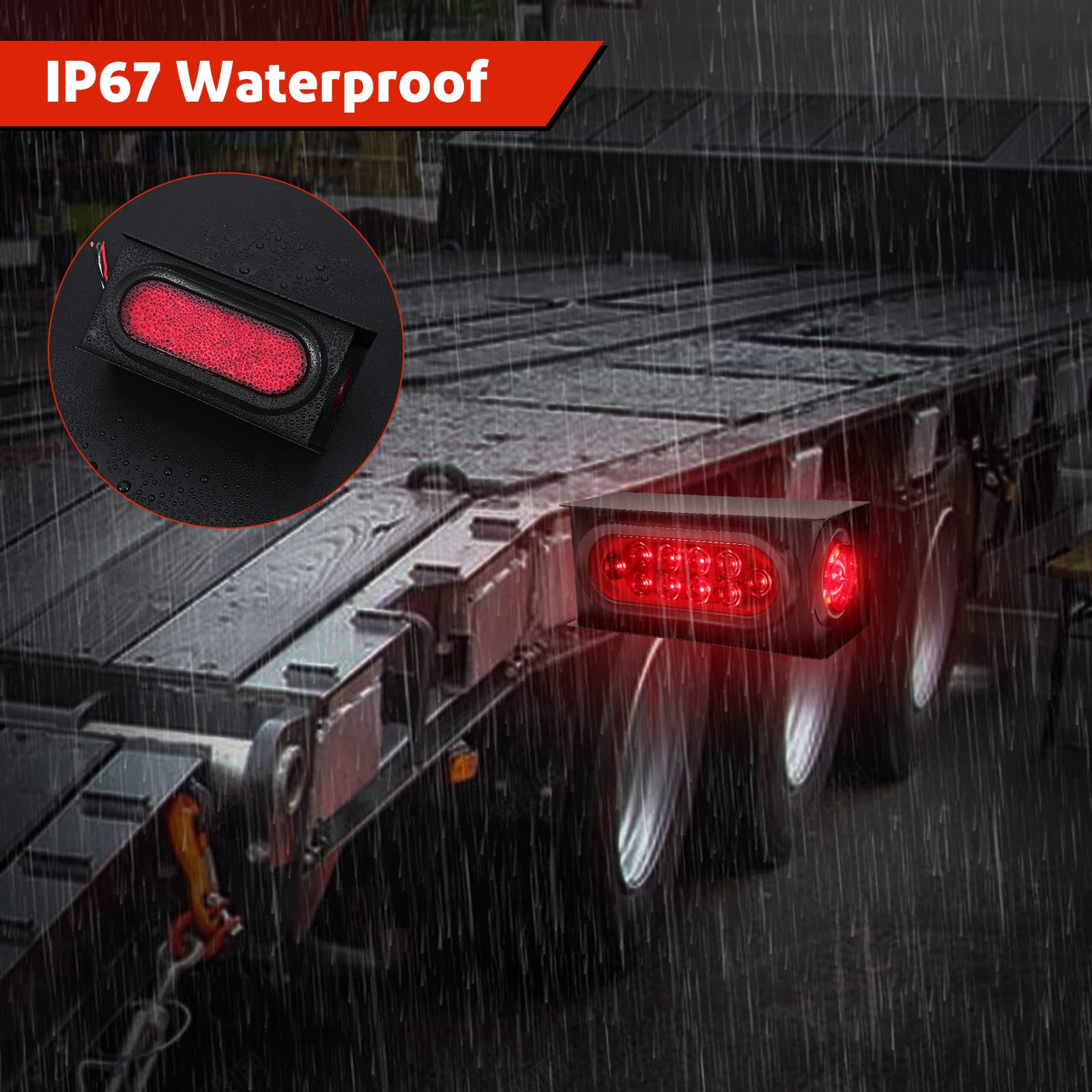

• IP67 Waterproof. This LED trailer light kit is completely sealed. Adopts welding technology for better waterproof performance. Effectively protects the tail light from sand, dust, dirt, water or snow.

• The heavy duty stell box protect the whole LED light bar effectively，can be mount to on the side, top or botom of trailer.

2 Red Steel Trailer Lights Boxes Housing Kit
Lens Color	Red
Light Color	Red
Light Source Type	LED
Number of LED	14（10 LED Oval + 4 LED Round）
Special Features	Waterproof
Waterproof Rating	IP67
Voltage	12V DC

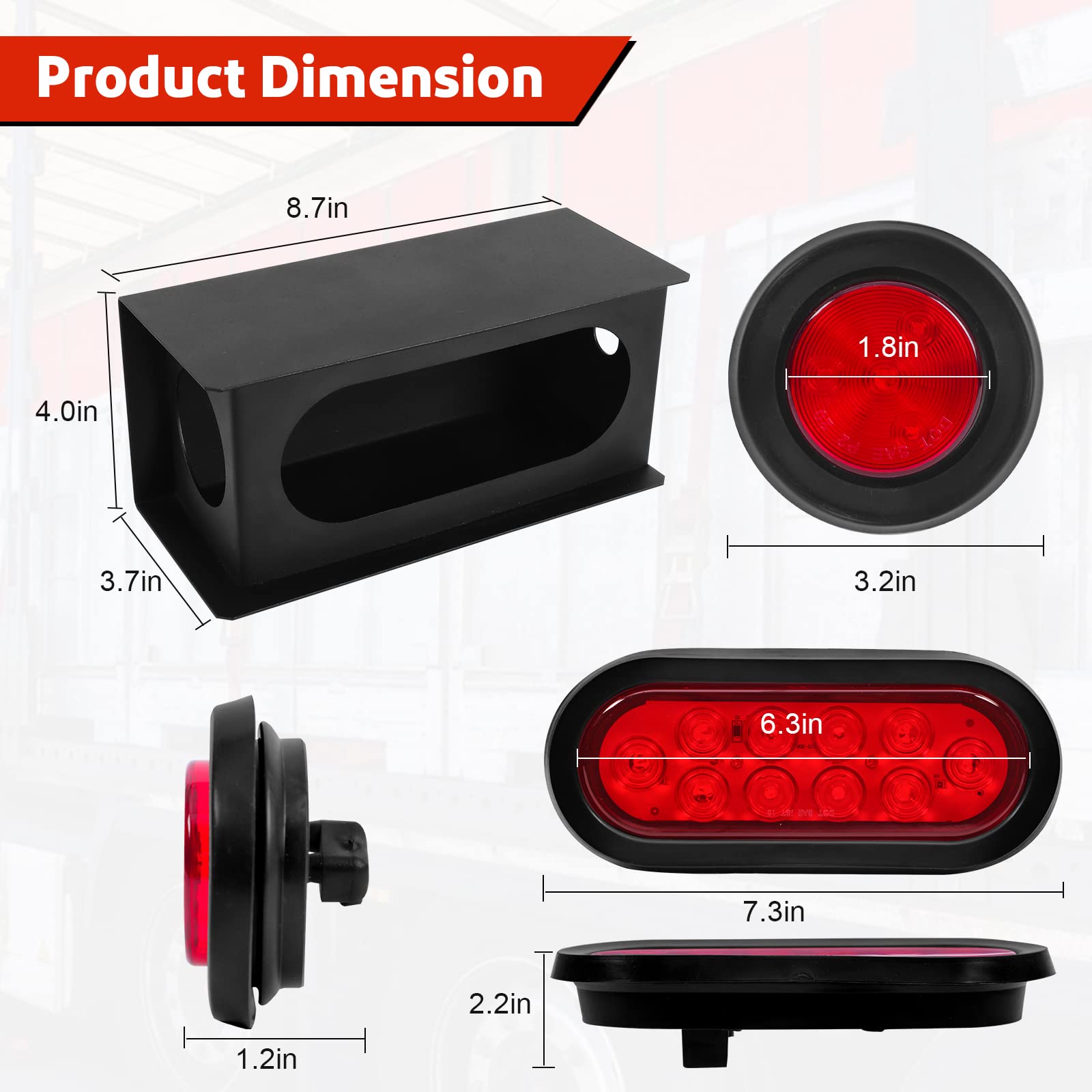

Dimension	Trailer Light Box: 8-3/4" X 4" X 3-3/4" Oval Light: 7.3”x 3.1” x1.8”( with Grommet) Round Light: 2.6” x 1.5”( with Grommet) License Plate Mounting Hole: 1/4” in Height
Use	Trucks, Trailers, Ships, Buses, Trucks, RV Camper, Caravans, Snowmobiles and Other 80-Inch-Wide Trailers.
Suitable Type	Running/Stop/Brake/Turn Signal Light.
Easy Installation	White Wire: Ground White Wire+ Black Wire: Low Brightness/Running Light White Wire + Red Wire: High Brightness/Brake Light

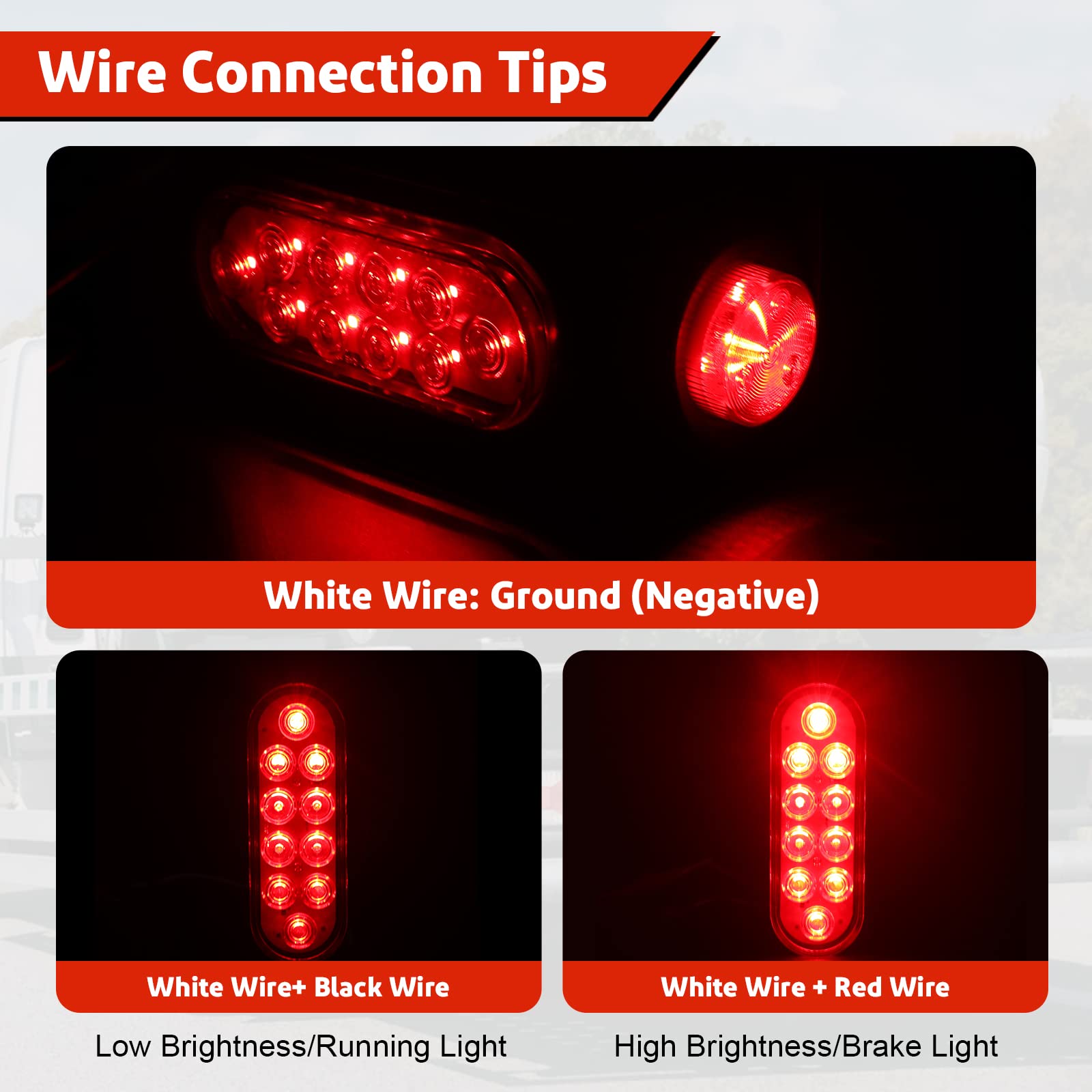

Wire Connection Tips:

White Wire: Ground
White Wire+ Black Wire: Low Brightness/Running Light
White Wire + Red Wire: High Brightness/Brake Light

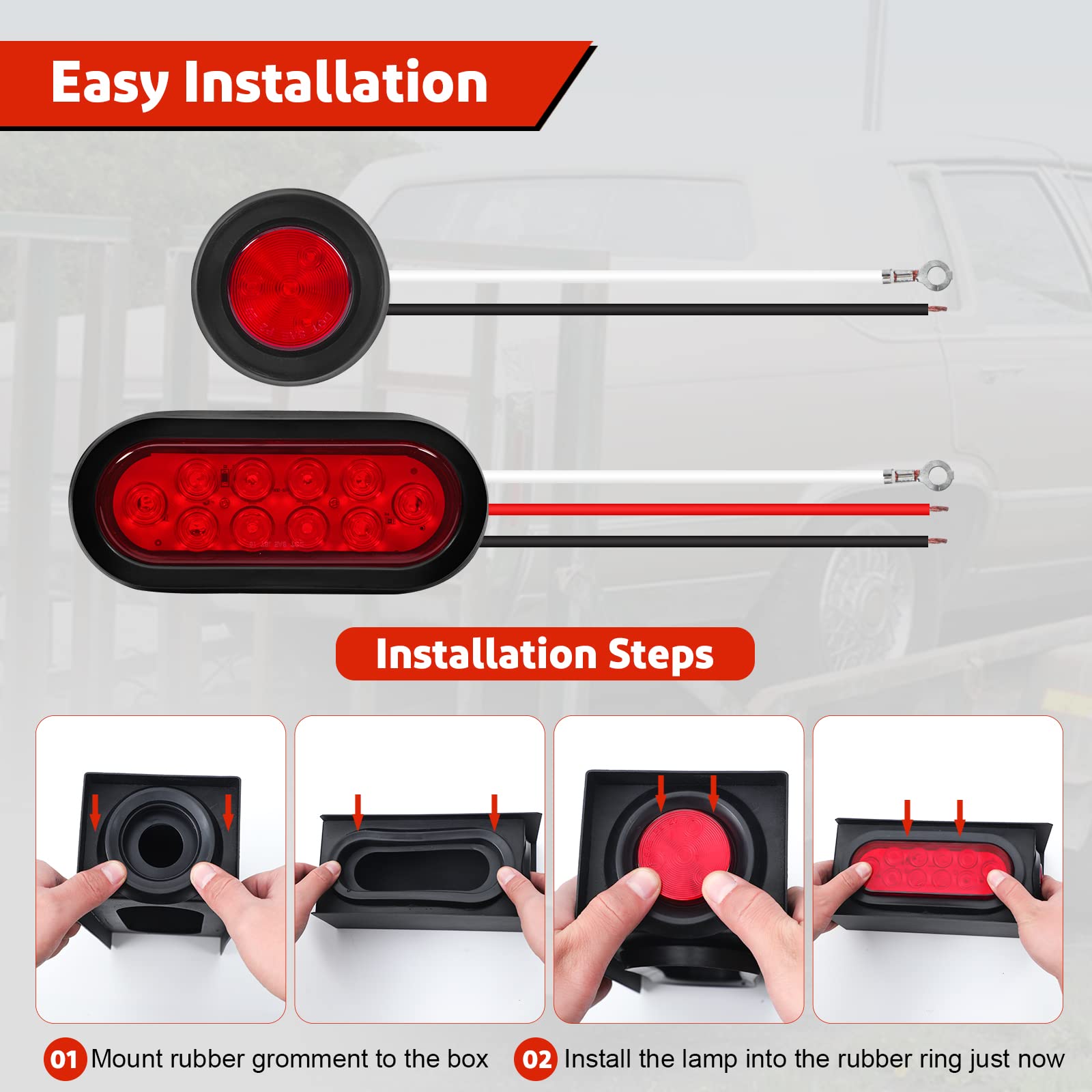

Firmly Install:

All in a set lights can inserted firmly to the grommet, and grommet seat firmly to the box, and plug are attached tightly to the light. No worries of light loose or wire loose.

Package Included:

2 X Welded Mount Heavy Duty Steel Boxes
2 X 6" Oval Red LED Trailer Lights w/ Rubber Grommets and wire connector
2 X 2" Round Red LED lights w/ Rubber Grommets
